Sequence Diagrams of Charity System

Here we shared Sequence Diagrams of Charity System. A sequence diagram is a type of UML diagram that shows the interactions between objects or components in a system over time. To write a sequence diagram for a charity system, you can follow these steps:

  1. Identify the objects or components that will be involved in the system. These can include actors such as donors, beneficiaries, and administrators, as well as system components such as a database or a payment gateway.
  2. Identify the main use case scenarios that the system will support. For example, a charity system may support scenarios such as donating money, applying for assistance, and managing donations.
  3. For each use case scenario, create a separate sequence diagram that shows the interactions between the objects or components involved.
  4. Begin by placing the actor or initiator of the scenario at the top of the diagram, and the objects or components that they interact with below.
  5. Use arrows to show the flow of messages or interactions between the objects or components. The arrow should point from the sender to the receiver and labeled with the message being sent.
  6. Use activation bars to indicate the duration of an object’s processing of a message.
  7. Use notes or comments to add additional details or explanations as needed.
  8. Finally, validate the sequence diagrams using tools such as UML validator to ensure that they conform to the UML standard.

It’s important to note that in order to write a comprehensive sequence diagrams, you should have a good understanding of the system, the use cases and the interactions between the different components.

Sequence Diagrams of Charity System

Admin Activities

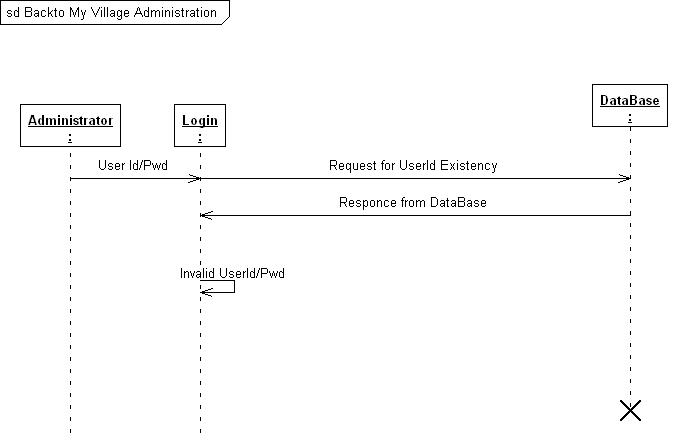

Backto My Village Administration Login

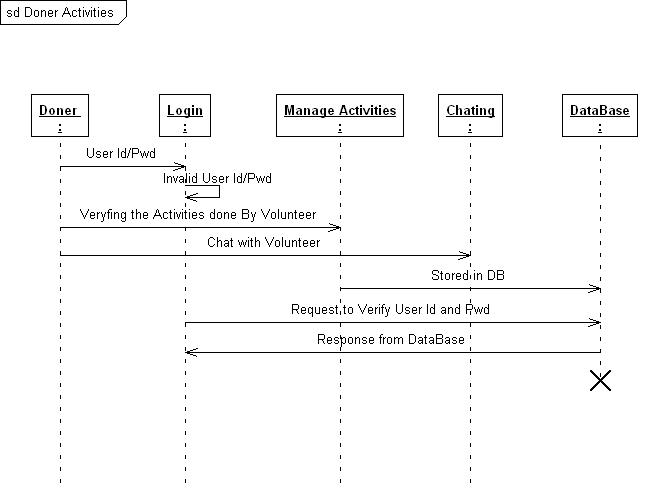

Donor Activities

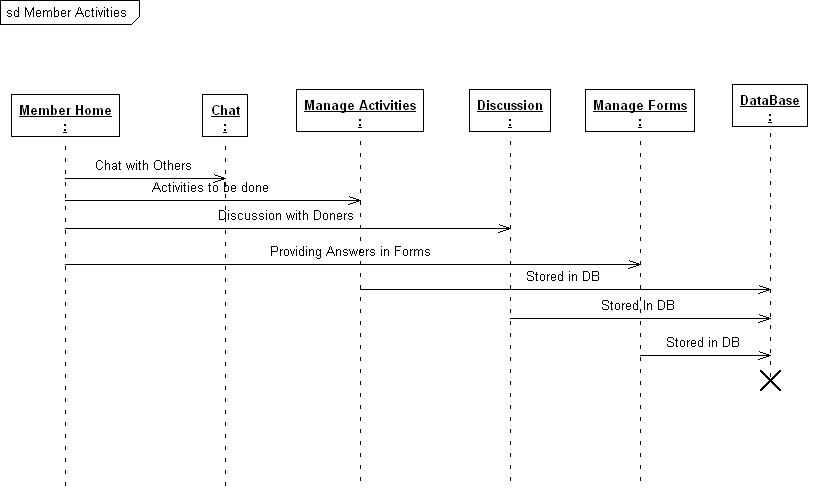

Member Activities

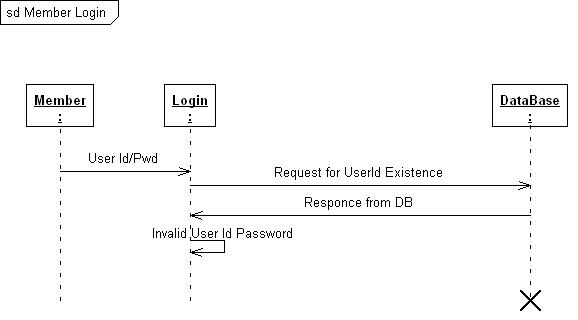

Member Login
